WAxes & Spatulas
Wax patterns and spatulas facilitate the waxing, finishing, and polishing process.
An immaculate waxed case will result in a high-shine appliance.
Made in the USA.
Save time using pre-formed wax patterns.

Waxes
Palate Wax

5015-01 80/box
Save time waxing with pre-formed palates created with the recommended thickness for a TCS palate.
Item Code: 5015-01 80/box
Lingual Wax

5020-01 1lb.
Pre-formed lingual bars are ideal for clasps, flange, and lingual connector areas.
Item Code: 5020-01 1 lb.
Sprue Wax

5025-01 1lb.
Easy to work with, does not get brittle. Ideal diameter for spruing. 5 gauge.
Item Code: 5025-01 1 lb.
Sprue Wax 9.5

5027-01 (5 pcs) 5026-01 (1 lb.)
Connect your sprue wax to the 9.5 sprue wax only at the tip of the flask opening to avoid unwanted plaster sticking to it.
Item Codes:
5 pcs 5027-01
1 lb (~30 pcs) 5026-01
Each piece yields ~10 injections.
Spatulas
Plaster Spatula

4230-01
German steel blade with wooden handle.
4-1/4" flexible blade.
Item Code: 4230-01
Plaster Knife

4231-01
German steel blade with wooden handle.
2-1/4" blade.
Item Code: 4231-01

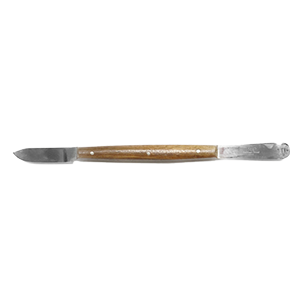

Fahnstock Knife & Spatula

4232-01
German steel blades with wooden handle for waxing.
Item Code: 4232-01
Wax Spatula

4233-01
German steel double ended spatula for waxing. Thin.
Item Codes: 4233-01
Wax Spatula

4234-01
German Steel double ended spatula for waxing. Thick.
Item Code: 4234-01

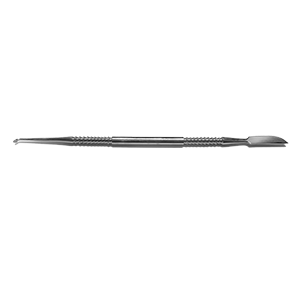

Wax Carver

4235-01
German steel double ended spatula and carver for waxing.
Item Code: 4235-01
TCS Carving Knife

4201-01
Excellent for removing extended fibers that sometimes appear when processing TCS partials. Also used to define the necklines of TCS restorations when necessary.
Item Code: 4201-01
Replacement Blades

4202-01 12 pcs
Replacement blades for the TCS Carving Knife.
Item Code: 4202-01 12 pcs.
How To: Tips & Techniques
best practices for palate wax application
Remove the try-in wax to prepare the model for wax up. Heat a Wax Spatula to melt lab wax onto the model. Spread the wax until a thin first "skin" layer is created. Then heat Palate Wax pattern until it begins to slightly warp and place it over the area; festoon if needed. With a Wax Spatula or Wax Carver trim off excess wax (be sure not to trim off the exact amount, leave extra to account for error), and begin to seal the edges.
Use a pencil eraser to shape the flanges
When it comes to creating contour and festooning, our fingers can create too many divots. To create a very smooth and natural contour, shave the eraser of a pencil into a wedge shape. Use the wedge in between teeth or other nooks and crannies to achieve a natural festoon.
best practices for lingual wax application
Heat a Wax Spatula to melt a thin layer of lab wax onto the model. Then slightly heat Lingual Wax pattern for easier application. The Lingual Bar Wax has a thin and thick side, place the thin side of the pattern against the teeth going slightly over the teeth and other small areas. With a Wax Spatula or Wax Carver trim off excess wax (be sure not to trim off the exact amount, leave extra to account for error), then heat instrument to begin sealing the edges to the bottom.
