All TCS Products
Get quality products with the highest customer service.
TCS Resins
TCS Equipment
Duplicating Unit – 2 Gallon

For value and reliability.
A double boil-out tank helps prolong the life of hydrocolloid paste.
- 1-year warranty
- Easy to use and maintain
- No water connections required
- Automatic heating and cooling
Item Code:
110V Unit 3614-01
Equipment Accessories
Bronze Plugs

3709-01(Thin), 3712-01(Thick)
The thick bronze plug is used when melting medium and small cartridges in the furnace.
The thin bronze plug is used when melting large cartridges in the furnace.
Item Codes:
Bronze Plug Thin. 3709-01
Bronze Plug Thick. 3712-01
Matrix Pusher

7010-JP
Melting Cylinder

3703-01
Fabricated from high precision stainless steel to withstand warpage under extreme heat.
Item Code: 3703-01
Metal Sprues

7014-JP
Knock Out Stand & Rod

3705-01, 3707-01
Steel tools used for purging the melting cylinder from the remaining cartridge and bronze plug after injection.
Item Codes:
Knock Out Stand. 3705-01
Knock Out Rod. 3707-01
TCS Flasks
Injection Flask

3701-01
Milled from one piece of aluminum block. Extra smooth finish facilitates the de-flasking process. Includes a special knock-out button to simplify case remove and prolong the life of the flask.
Item Code: 3701-01
JP Flask

7005-JP
Fabricated from high precision stainless steel to withstand warpage under extreme heat. Used with the JP90 Handheld Injector.
Item Code: 7005-JP

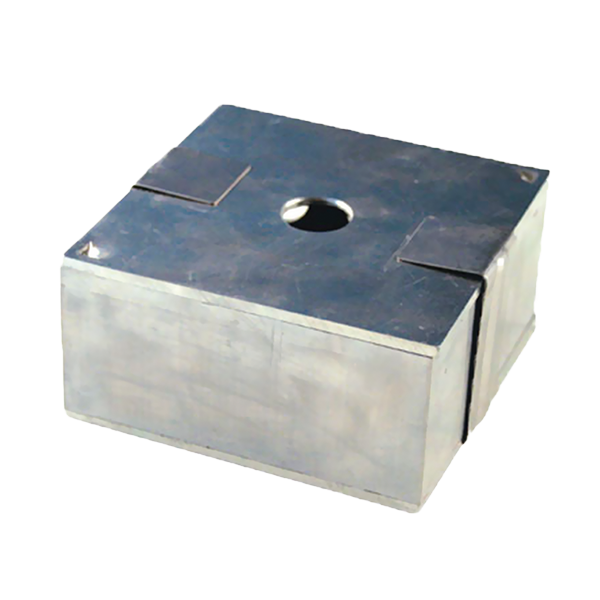

Nightguard Pour Flask

3651-01
Used for the fabrication of nightguards and/or duplicate models. Manufactured in lightweight aluminum. Easy to assemble, disassemble and clean.
Item Code: 3651-01
Pour Flask

3650-01
Used for acylic pour technique and/or to duplicate models. Manufactured in light-weight aluminum. Easy to assemble, disassemble and clean.
Item Code: 3650-01
Waxes & Spatulas
Lingual Wax

5020-01 1lb.
Pre-formed lingual bars are ideal for clasps, flange, and lingual connector areas.
Item Code: 5020-01 1 lb.
Palate Wax

5015-01 80/box
Save time waxing with pre-formed palates created with the recommended thickness for a TCS palate.
Item Code: 5015-01 80/box
Sprue Wax

5025-01 1lb.
Easy to work with, does not get brittle. Ideal diameter for spruing. 5 gauge.
Item Code: 5025-01 1 lb.
Sprue Wax 9.5

5027-01 (5 pcs) 5026-01 (1 lb.)
Connect your sprue wax to the 9.5 sprue wax only at the tip of the flask opening to avoid unwanted plaster sticking to it.
Item Codes:
5 pcs 5027-01
1 lb (~30 pcs) 5026-01
Each piece yields ~10 injections.
Fahnstock Knife & Spatula

4232-01
German steel blades with wooden handle for waxing.
Item Code: 4232-01
Plaster Knife

4231-01
German steel blade with wooden handle.
2-1/4" blade.
Item Code: 4231-01
TCS Carving Knife

4201-01
Excellent for removing extended fibers that sometimes appear when processing TCS partials. Also used to define the necklines of TCS restorations when necessary.
Item Code: 4201-01
Replacement Blades

4202-01 12 pcs
Replacement blades for the TCS Carving Knife.
Item Code: 4202-01 12 pcs.
Plaster Spatula

4230-01
German steel blade with wooden handle.
4-1/4" flexible blade.
Item Code: 4230-01
Wax Carver

4235-01
German steel double ended spatula and carver for waxing.
Item Code: 4235-01
Wax Spatula

4234-01
German Steel double ended spatula for waxing. Thick.
Item Code: 4234-01
Wax Spatula

4233-01
German steel double ended spatula for waxing. Thin.
Item Codes: 4233-01
Processing Tools

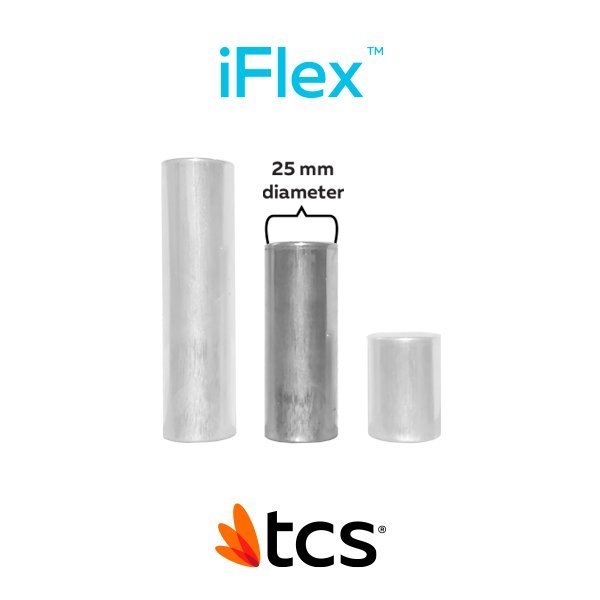

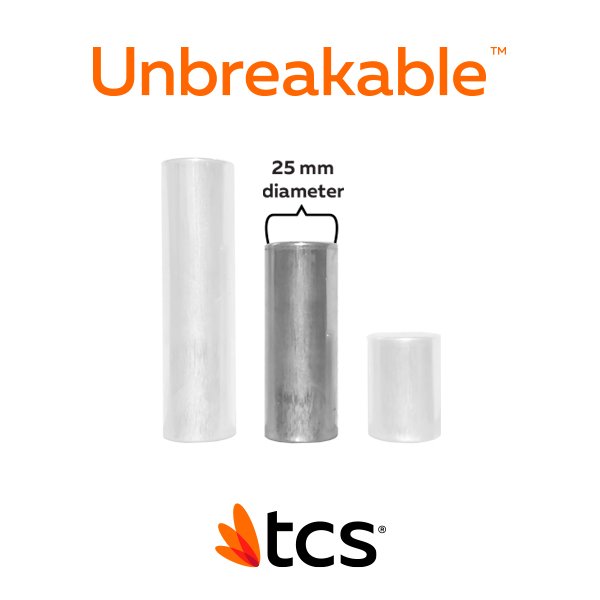

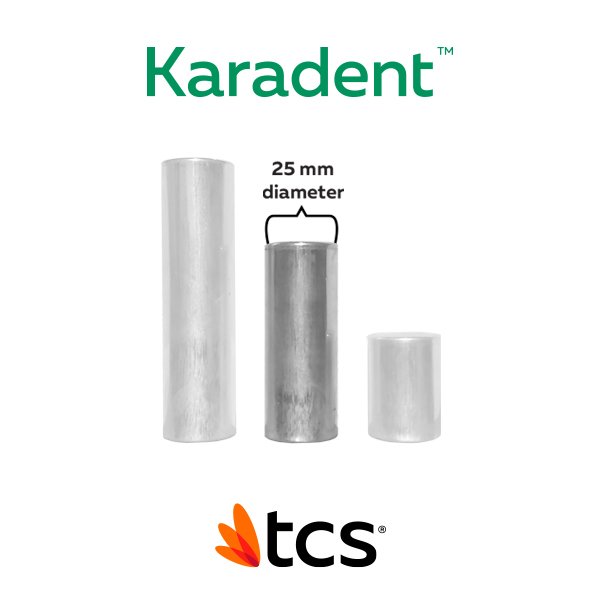

Empty Cartridges

Available in a variety of sizes
Empty cartridges are sold in packs of 50.
Item Codes:
25mm | 28mm | 22mm | |
Small | 3003-01S | ||
Medium | 3003-01M | 3003-01MF | 3003-01M22 |
Large | 3003-01L | 3003-01LF | 3003-01L22 |
EZ Flow

4217-01 (16 oz) 4218 (1 gal)
Separating medium for processing thermoplastics. Eliminates the stone sticking to the partial, leaving it shiny and clean.
Item Codes:
4217-01 16 oz.
4218-01 1 gallon.
Fusing Liquid

3812-01 1/2 oz.
For repairs and additions to existing TCS restorations. The Fusing Liquid is ONLY used when flasking and injecting are necessary.
Item Code: 3812-01 1/2 oz.
Hot Air Welder

3714-01
Hand torch in a slim design for minor repairs or additions to TCS restorations. Refillable with butane (butane not included).
Item Code: 3714-01
Mold Release Spray

3814-01 12 oz.
Colorless and non-staining, multi-purpose lubricating spray, used to ease the purging of the furnace accessories and TCS cartridges during the injection process.
Item Code: 3814-01 12 oz.
TCS Cement

3801-01 1/2 oz.
Use to secure teeth in the stone prior to injection. Mild enough to keep teeth from bonding to the stone during injection.
Item Code: 3801-01 1/2 oz.
TCS Putty & Catalyst

4296-01 400g
Use to create a matrix when injecting with the JP90 Handheld Injector. Can also be used to invest for clean injections.
Item Codes:
4296-01 400 g
Twist Drills

Available in a variety of sizes. 6 pcs
Use to create the necessary diatoric retention in acrylic teeth when fabricating TCS restorations.
Item Codes:
005 5005-01 6 pcs.
006 5006-01 6 pcs.
009 5009-01 6 pcs.
012 5012-01 6 pcs.
Finishing Tools
Brown Rubber Points

4514-01, 4513-01 12 pcs
Ideal to eliminate scratches and smoothen the surface.
Use a handpiece that can be regulated to 30,000 RRM or a lathe.
RPM= 25,000 (do not press too hard, especially when using the buff for the first time).
Item Codes:
Small 4513-01 12 pcs.
Large 4514-01 12 pcs.
Brown Rubber Wheels

4503-01 100/box
Use prior to pumicing in order to obtain a high shine. It is crucial that the entire partial is rubberized and smoothened.
Item Code: 4503-01 100/box.

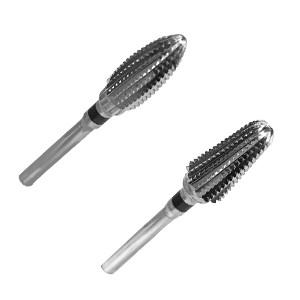

Carbide Burs

50251G-01
Specifically designed to cut thermoplastics. Long-lasting with high cutting efficiency.
Item Code:50251G-01
Econo Cutter & Mandrel

4203-01, 4204-01
Use to cut off sprues from TCS restorations after injection.
Item Codes:
Econo Cutter 4203-01
Econo Mandrel 4204-01
Green Mounted Stones

4501-01 100/box
Used during the finishing stage. Cuts thermoplastics moderately, and leaves a smooth surface. Ideal for minor chairside adjustments.
Use a handpiece that can be regulated to 30,000 RPM or a lathe.
RPM= 30,000
Item Code: 4501-01 100/box.
Mini Fuzz Buff

4222-01 12 pcs
Use after the Brown Rubber Wheels to further smoothen the partial prior to pumicing.
Use a handpiece that can be regulated to 30,000 RPM or a lathe.
RPM= 25,000-30,000
Item Code: 4222-01 12 pcs.
Pink Grinding Wheels

4205-01 100/box
Excellent and economical product for the finishing stage.
Item Code: 4205-01 100/box
Pink Zirconia Burs

5035Z(Fine), 5045Z(Coarse)
Item Codes:
Pink Zirconia Coarse Bur 5045Z
Use during the finishing stage to cut excess material and trim the appliance to the desired length. Ideal for gross reduction.
Use a handpiece that can be regulated to 30,000 RPM or a lathe.
RPM= 30,000Pink Zirconia Fine Bur 5035Z
Use during the finishing stage to leave the surface smooth and prepped for the Brown Rubber Wheel. Also, ideal for chairside adjustments.
Use a handpiece that can be regulated to 30,000 RPM or a lathe.
RPM= 30,000
Rubberized Abrasives

4304-01(Thin), 4306-01(Thick)
Long-lasting wheel for smoothening the partial during the finishing stage.
Item Codes:
Thin 4304-01
Thick 4306-01
White Knock Down Wheel

4211-01, 4212-01
One of the first steps in the finishing stage, cuts excess bulk and trims partial to the desired length.
Item Codes:
White Knock Down Wheel 4211-01
White Knock Down Chuck 4212-01
Polishing Tools
Brown Tripoli

4206-01 2 lbs.
Use after pumicing to prepare the appliance for polishing. Effective for all TCS resins. Use with a dry Rag Buff.
Item Code: 4206-01 2 lbs.
Green Hi-Shine

4209-02 1 lb.
Use after Brown Tripoli to polish the surface of Karadent™ and Unbreakable™ partials. Use with a dry Rag Buff.
Item Code: 4209-02 1 lb.
iShine

4220-01 10.75 oz.
Use after Brown Tripoli to polish the surface of iFlex™ partials (and other polyolefin thermoplastics). Use with a dry Rag Buff.
Item Code: 4220-01 10.75 oz.
Mini Rag Buff

4221-01 12 pcs
Recommended to dentists for polishing touch-ups after minor adjustments on TCS appliances. Use with Green Hi-Shine or iShine polishing paste.
Use a handpiece that can be regulated to 30,000 RPM or a lathe.
RPM= 25,000
Item Code: 4221-01 12 pcs.
Polycril

4298-01 1 lb.
An advanced formula for pumicing acrylics and thermoplastics at high-speed.
Item Code: 4298-01 1 lb.
Rag Buff

4207-01
Stitched only in the center for the extra softness needed to polish TCS restorations.
Item Code: 4207-01
Turbo Buff

4208-01
Pumicing buff with siliconized cotton cloth. Use for pumicing only.
Item Code: 4208-01
TCS Promotional Items
How To: Tips & Techniques
Pumicing with the TCS Turbo Buff
Using the TCS Turbo Buff for pumicing cuts pumicing time in half. Simply soak the Turbo Buff before use, mix polycril compound with water until it reaches a muddy consistency, and then begin pumicing (focusing on one section at a time). Remember to apply moderate pressure and protect the teeth with your fingers.
Rag Buff 101
Designate one Rag Buff to one specific use. Using one product per buff prolongs the life of your Rag Buff and ensures a better shine. Mixing products on a single buff cancels the products' intended purpose.
The best paste for each material
For Best Results*: Polish Unbreakable™ with Green Hi-Shine paste on high speed with moderate pressure. Polish iFlex™ with Green Hi-Shine paste on high speed with moderate pressure. Polish Karadent™ with iShine paste on medium-high speed with very light pressure. *Prior to polishing an appliance, apply Brown Tripoli with a Rag Buff using medium to high pressure.
